Richter | Metritools


Official Richter Importer

Richter photos

Tank Dipping TapeOil Gauging, Oil Gauge TapeOil Gauging, measuring tape, diameter tape and many others Richter tools...

Friedrich Richter Messwerkzeuge GmbH & Co. KG is a metrology expert, manufacturing measuring devices since 1920.


Made in Germany

Richter logo

Decameters & Diameter Measuring Tapes

Group 1

Richter Measuring Tapes

This group includes a large range of decameters and diameter measuring tapes in several finishes : steel, fiberglass, etc... Range available in meters and feet.

All decameters and diameter measuring tapes are standard constructed under the CE Class II accuracy, CE Class I accuracy manufacturing is available at extra cost.

pdf iconDecameters & Diameter Measuring Tapes

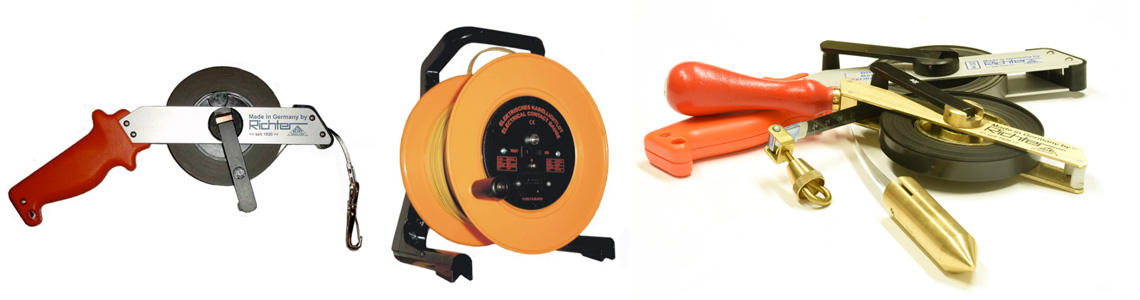

Tank Dipping Tapes

Group 2

Richter Tank Dipping Tapes

Group 2 includes a large range of tank dipping tapesOil Gauging of carbon steel, stainless steel, white enamelled steel, they have been made to gauge hydrocarbons, water levels, etc... Range available in meters and feet.

All tank dipping tapes are standard constructed under the CE Class II accuracy, CE Class I accuracy manufacturing is available at extra cost.

Scale Measuring Tapes
Standard or self-adhesive on the reverse side

Group 3

Richter Scale Measuring Tapes

Group 3 includes a very precise range of scale measuring tapes made of white enamelled steel, yellow enamelled steel nylon coated.

Several lengths are available, 10 mm or 13 mm wide, readings from left to right, from right to left, from up/down, from down/up. Range available in meters.

Also, scale measuring tapes with double graduation system, 16th of an inch (upper edge) and millimeters (lower edge).

pdf iconScale Measuring Tapes

Spirit Levels

Group 4

Richter Spirit Levels

Group 4 includes a large spirit levels range of light anodised metal, magnet, electronic. Inclination measuring devices, angle devices, circular vials, rotating laser is also available.

pdf iconSpirit Levels

Folding Rules

Group 5

Richter Measuring Rules

Group 5 includes a range of folding rules constructed under the CE Class III, made of wooden, plastic fiberglass reinforced and flexible stainless steel.

Telescopic measuring devices and laser distance measuring equipments are also available in this group.

pdf iconFolding Rules

Micrometers

Group 6

Richter Precision Measuring Equipment

Group 6 includes a large range of electronic micrometers, thickness measuring devices, etc... Range available in millimeters and inches.

pdf iconMicrometers

Surveying Equipment

Group 7

Richter Surveying Equipment

Group 7 includes a large range of surveying equipment, distance measuring wheels, etc...

pdf iconSurveying Equipment

Accuracy table CE Class II

Richter logo

Maximum tolerance ± on the complete Richter range manufactured under the CE Class II accuracy.

Formula: a+bL(a=0,3 mm; b=0,2 mm; L in meters)


m 0 10 20 30 40 50 60 70 80 90 100
0 2,3 4,3 6,3 8,3 10,3 12,3 14,3 16,3 18,3 20,3
1 0,5 2,5 4,5 6,5 8,5 10,5 12,5 14,5 16,5 18,5
2 0,7 2,7 4,7 6,7 8,7 10,7 12,7 14,7 16,7 18,7
3 0,9 2,9 4,9 6,9 8,9 10,9 12,9 14,9 16,9 18,9
4 1,1 3,1 5,1 7,1 9,1 11,1 13,1 15,1 17,1 19,1
5 1,3 3,3 5,3 7,3 9,3 11,3 13,3 15,3 17,3 19,3
6 1,5 3,5 5,5 7,5 9,5 11,5 13,5 15,5 17,5 19,5
7 1,7 3,7 5,7 7,7 9,7 11,7 13,7 15,7 17,7 19,7
8 1,9 3,9 5,9 7,9 9,9 11,9 13,9 15,9 17,9 19,9
9 2,1 4,1 6,1 8,1 10,1 12,1 14,1 16,1 18,1 20,1

Accuracy table CE Class I

Richter logo

Maximum tolerance ± on the complete Richter range manufactured under the CE Class I accuracy.

Formula: a+bL(a=0,1 mm; b=0,1 mm; L in meters)


m 0 10 20 30 40 50 60 70 80 90 100
0 1,1 2,1 3,1 4,1 5,1 6,1 7,1 8,1 9,1 10,1
1 0,2 1,2 2,2 3,2 4,2 5,2 6,2 7,2 8,2 9,2
2 0,3 1,3 2,3 3,3 4,3 5,3 6,3 7,3 8,3 9,3
3 0,4 1,4 2,4 3,4 4,4 5,4 6,4 7,4 8,4 9,4
4 0,5 1,5 2,5 3,5 4,5 5,5 6,5 7,5 8,5 9,5
5 0,6 1,6 2,6 3,6 4,6 5,6 6,6 7,6 8,6 9,6
6 0,7 1,7 2,7 3,7 4,7 5,7 6,7 7,7 8,7 9,7
7 0,8 1,8 2,8 3,8 4,8 5,8 6,8 7,8 8,8 9,8
8 0,9 1,9 2,9 3,9 4,9 5,9 6,9 7,9 8,9 9,9
9 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0
Made in Germany

Richter logo

Here you can purchase and pay by PayPal (Credit Card).
For this purpose, please contact us through our contact form.

Richter diameter pocket measuring tape

White enamelled steel tape, ABS case, reads the outside diameter in millimeters and inches, manufactured in Germany.

Unit price: 9,99 EUR (shipping charges are not included).

Richter Diameter Pocket Measuring Tape

Features:

➯ Accuracy: CE Class II

➯ Width: 10 mm / 3/8"

➯ Front: mm graduation (lower) / inches (upper)

➯ Measuring ranges: from 0 to 2000 mm / 0" to 78"

➯ Length: 2 meters / 78"

➯ Back: diameter reading mm / inches
